Features

●3 tier sandwich insulation panels (FRP + PS + fiberglass), to prevent energy loss.

●Continuous EPDM foam seal to resist harmful wind and prevent leakage.

●Completely closed during the winter, insulation performance is eight times more  than the normal curtain.

●With sufficient stiffener to prevent bending, deformation and not sealed tightly.

●Each rib with adjustable arm garbage, save your force to adjust clamping force.

●Eliminate the dead angle of inlet of cooling pad when tunnel ventilation.

●Eliminate a large area ventilation Dead angle on both sides of the wall when tunnel ventilation.

●Control airflow direction, screwed air, better mixing with the air.

●Heating costs lower than normal curtain about 15%.

●You can easily adjust the opening in accordance with instructions issued by the controller.

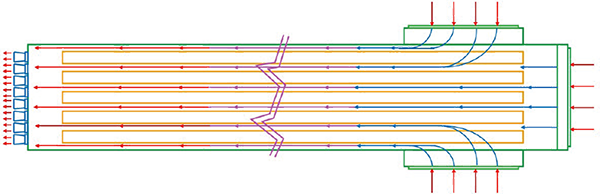

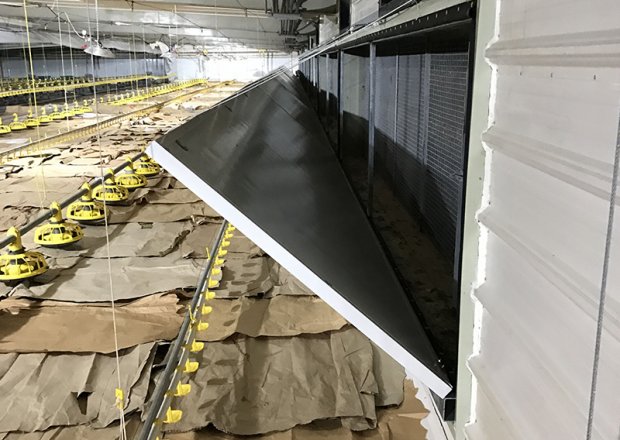

Tunnel ventilation mode

●In tunnel ventilation mode,adjust the air intake volume to gain suitable longitudinal ventilation speed and decrease the dead zones.

●Doors made of insulation material,to reduce heat loss when outside temperature is much lower than inside.

●Tunnel doors frame sealed with auto industry door sealing technology ,which can prevent wind entering and avoid stress reaction of birds.

●Modular panel design,easy and quick for installation.
